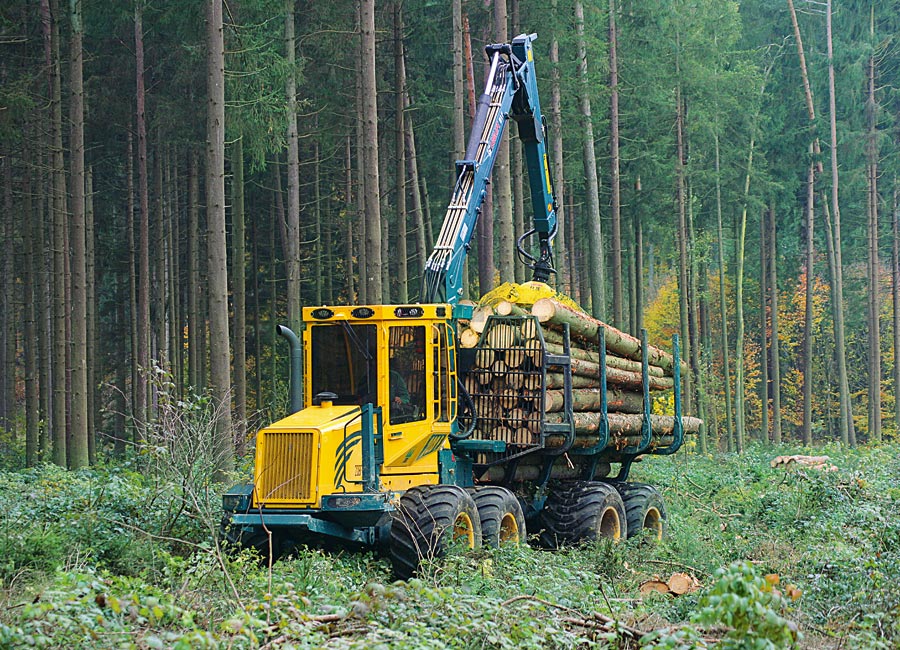

HSM 208F 11 t

The compact and agile 208F 11 to forwarder enthuses its users thanks to its very high level of flexibility and, as with all HSM machinery, its high quality finish. The powerful, economic Iveco 6-cylinder engine with its optimised hydrostatic drive and high performing hydraulic system guarantee superlative productivity for our professional customers. The option of fitting powerful cranes rounds off this model and permits the machines to be used with thick trunk timber.

Engine:
  • VOLVO PENTA
    TAD881VE EU Stage V
    Power: 185 kW (252 HP) from 1600 rpm
    Max. revolution: 1150 Nm from 1100 - 1500 rpm
    Max. torque: 1175 Nm at 1400 rpm
    Displacement: 7,7 liters

    Optional:

  • VOLVO PENTA
    TAD882VE EU Stage V
    Power: 210 kW (286 HP) from 1700 rpm
    Max. revolution: 1225 Nm from 1100 - 1600 rpm
    Max. torque: 1255 Nm at 1400 rpm
    Displacement: 7,7 liters
Hydraulic system:
  • Load sensing
  • Variable pump (working pump):
    flow rate: 304 l/min from 1600 rpm
    pressure: up to max. 350 bar
  • Hydraulic oil: saturated synthetic ester
    Panolin HLP SYNTH with Kleenoil
    microfiltration; WGK 1
Tank capacity:
  11 t / 12 t 14 t
Diesel: 190 l 225 l
AdBlue: 45 l 45 l
Hydraulic oil: 130 l 130 l



Brake:
  • Brake with 2-circles, oil-cooled multiple-disc power-brake
  • Spring accumulator – parking brake
Steering:
  • Articulated frame steering with 2 cylinders
  • Steering angle 45°
Cabin:
  • Raisable to side on parallel linkages
  • ROPS, FOPS, OPS tested
  • Rotary seat with pedals in front and rear
  • Wiper in front and rear, optional on the side
  • Air cushioned seat with seat heating
  • Hot-water heating
  • Air conditioning
Electrics / Instruments:
  • HSM Ecommand colour-display
  • 5 operator programs + factory setting
  • Diagnosis-tool and error-indication
  • Graphic support at parameter editing
  • Generator 110 A (28 V)
  • 2 service-free dry batteries á 75 Ah
Power train:
  • NAF 2 speed transfer gearbox
  • HSM High Speed Drive (series 71); speed at 1st gear 0-14 km/h
Standard equipment:
  • 14 LED-working headlight at cabin
  • 4 working headlights at crane
  • Potential transformer 24 V - 12 V
  • Radio with CD
  • Fire extinguisher
  • First aid kit
  • Warning triangle
  • Tool kit
  • Cooling box
  • Reversing camera with color monitor
  • Rear headlights
  • Twist lock with 2 hydraulic cylinders
Special equipment:
  • Front dozer-blade
  • Tandem axle lift (Bogie lift) front
  • Turnable rung
  • Last rung plugged
  • Tiltable crane
  • Quick-change system for rungs
  • Clambunk
  • Auxiliary heating
  • Bogie-tracks
  • Radio control for winch
  • Drive by radio
  • Sun blinds
  • Pluggable front grid
  • Cab suspension HCS
  • Crane tip control xyControl (Epsilon crane only)
  • Other accessories on request
Weight:
  • from 17.800 kg
    Weight distribution:
    front axle: 60 %,
    rear axle: 40 %

Tyres:
  Width: Overall width: Width for tracks:
Series: 710/45-26,5 2600 mm 2700 mm
Optional: 600/55-26,5 2400 mm 2500 mm
  800/40-26,5 2700 mm 2800 mm
  870/40-26,5 2900 mm 3000 mm
  54x37-25 2900 mm 3000 mm
Axles:
  • NAF portal-bogie-axles
  • Front: switchable differential lock 100 %
  • Rear: switchable differential lock 100 %
Crane:
  • Series: Epsilon M70 F80
  • For further cranes see crane brochure
Loading area:
  • 4 rungs
  • Length: 4400 mm
  • Cross section: 4,0 m2 / Option 4,3 m2
  • Load capacity: 11 t
HSM Crane-list EPSILON

X = available against surcharge, O = standard equipement, # = not available

EPSILON

Crane typ Lifting moment Range Gripper type 208F 11 t
C60 F69 82/63 kNm 6,9 m FG43S #
C60 F86 82/51 kNm 8,6 m FG43S #
M70 F80 102/68 kNm 8,0 m FG43S O
M70 F86 102/68 kNm 8,6 m FG43S X
M70 F101 102/65 kNm 10,1 m FG43S X
M80 F80 114/79 kNm 8,0 m FG43S X
M80 F86 114/79 kNm 8,6 m FG43S X
M80 F101 114/75 kNm 10,1 m FG43S X
S100 F80 128/91 kNm 8,0 m FG43S X
S100 F86 128/90 kNm 8,6 m FG43S X
S100 F101 128/86 kNm 10,1 m FG43S X
S110 F80 143/104 kNm 8,0 m FG43S X
S110 F86 143/104 kNm 8,6 m FG43S X
S110 F101 143/100 kNm 10,1 m FG43S X
X120 F80 159/111 kNm 8,0 m FG43S #
X120 F86 159/110 kNm 8,6 m FG43S #
X120 F102 159/107 kNm 10,2 m FG43S #
X140 F80 173/123 kNm 8,0 m FG43S #
X140 F86 173/122 kNm 8,6 m FG43S #
X140 F102 173/119 kNm 10,2 m FG43S #
Low crane column (height 1730 mm)
series at steep slope and Kombi
      X
HSM Crane-list Mesera

X = available against surcharge, O = standard equipement, # = not available

Mesera

Crane typ Lifting moment Range Gripper type 208F 11 t
F59 F72 78/56 kNm 7,2 m FG43S #
F59 FT85 78/51 kNm 8,5 m FG43S #
F59 FT100 78/47 kNm 10,0 m FG43S #
F59 FT100i 78/47 kNm 10,0 m FG43S #
F71 F72 99/75 kNm 7,2 m FG43S X
F71 FT85 99/70 kNm 8,5 m FG43S X
F71 FT100 99/66 kNm 10,0 m FG43S X
F71 FT100i 99/66 kNm 10,0 m FG43S X
F83 F72 106/82 kNm 7,2 m FG43S X
F83 FT85 106/76 kNm 8,5 m FG43S X
F83 FT100i 106/73 kNm 10,0 m FG43S X
M 92 F80i 130/84 kNm 8,0 m FG43S X
M 92 FT86i 130/84 kNm 8,6 m FG43S X
M 92 FT100i 130/84 kNm 10,0 m FG43S X
F111 F72 151/111 kNm 7,2 m FG43S #
F111 F85 151/100 kNm 8,5 m FG43S #
F111 FT85 151/100 kNm 8,5 m FG43S #
F111 FT91 151/98 kNm 9,1 m FG43S #
F111 FT100 151/101 kNm 10,0 m FG43S #
M122 F85i 155/110 kNm 8,5 m FG43S #
M122 F96i 155/ - kNm 9,6 m FG43S #
M122 FT100i 155/ - kNm 10,0 m FG43S #
M142 F85i 178/132 kNm 8,5 m FG43S #
M142 F96i 178/124 kNm 9,6 m FG43S #
M142 FT100i 178/ - kNm 10,0 m FG43S #
