805HDF Kombi short/long

Technical data model series 805

Engine (4 cylinder):

VOLVO PENTATA
D581VE EU Stage V
Power: 129 kW (175 HP) at 1700 rpm
Max. revolution: 800 Nm at 1100 - 1500 rpm
Max. torque: 816 Nm at 1380 rpm
Displacement: 5,13 liters

Optional:
VOLVO PENTA
TAD583VE EU Stage V
Power: 175 kW (238 HP) at 1750 rpm
Max. revolution: 947 Nm at 1200 - 1750 rpm
Max. torque: 969 Nm at 1380 rpm
Displacement: 5,13 liters

Transmission:

HSM TwinPowerDrive

Axles:

Planetary axles
100 % separately selectable differential locks, front and rear

Brake:

2-circuit brake, disk brake running in an oil bath
Spring-loaded parking brake

Steering:

Articulated steering with 2 cylinders
45° steering angle

Tank capacity:

Diesel: 235 l
AdBlue: 25 l
Hydraulic oil: 100 l

Hydraulic system:

Load sensing
Pump output: Flow rate: 232 l/min at 1600 rpm
Pressure: up to 350 bar
Hydraulic oil: Saturated synthetic ester
Panolin HLP SYNTH with Kleenoil
Microfiltration; WGK 1

Cabin:

HSM Panorama comfort cab
ROPS, FOPS, OPS tested safety cab
Swivel seat device, air-suspended comfort seat
Heating/air-conditioning

Electrics / Instruments:

HSM Ecommand colour-display
5 operator programs + factory setting
Diagnosis-tool and error-indication
Graphic support at parameter editing
Generator 110 A (28 V)
2 service-free dry batteries á 55 Ah

Standard equipment:

12 LED work lamps, 24 V - 12 V voltage transformer, radio with CD player, fire extinguisher, first-aid kit, warning triangle, tool set
Torsion lock with 2 hydraulic cylinders and much more

Special equipment:

Tiltable front polder shield, trailer hitch, outer hydraulic connection, remote control for cable winch, wireless driving, auxiliary heating, sun blinds, seat area dampers
Additional accessories on request

Technische Details 805HDF Kombi short/long

Winches:

Series:
Adler HY 20-SG (2 x 100 kN) double-drum winch
Max. cable take-up 14 mm, 100 m
Optional:
Adler HY 24-SG (2 x 120 kN) double-drum winch
Max. cable take-up 14 mm, 130 m
Adler HY 32-SG (2 x 160 kN) double-drum winch
Max. cable take-up 14 mm, 130 m

Weight:

from 15.300 kg / 15.500 kg

Payload:

11 t

Crane:

Epsilon M70 F80 (series)
For further cranes see crane brochure

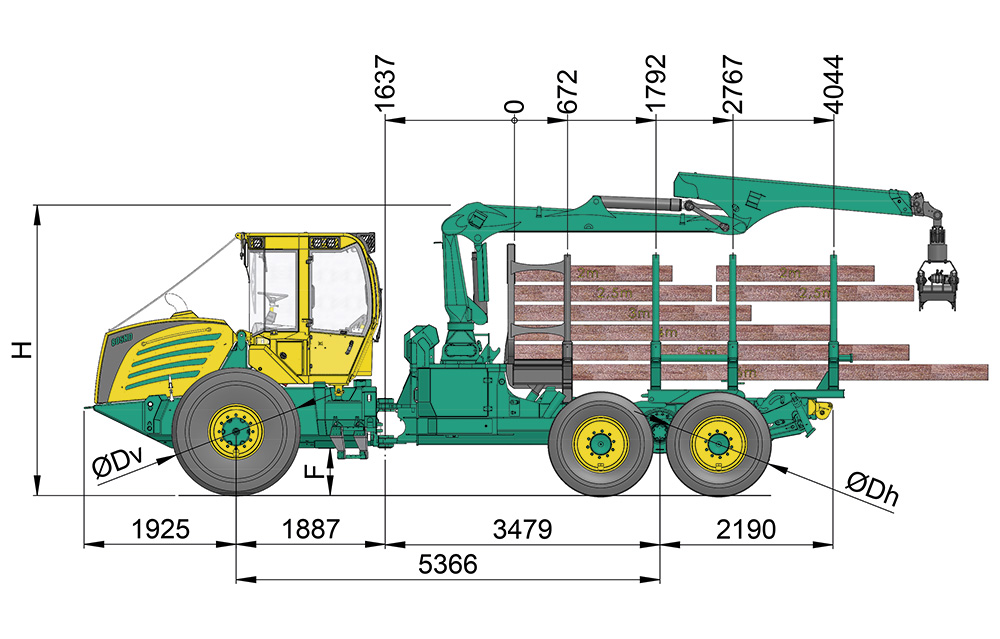

Tyres:

Series:	Size:	Minimum width:	H:	F:
Front:	23,1 x 26	2550 mm	3670	530
Rear:	710/45x26,5

The minimum width changes when using belts (+100).
Other tyres on request.

Standard equipment:

Headboard grid and first stanchion removable
Last stanchion can be removed and adjusted to
(short) 2,4 m, 3,2 m and 3,8 m
(long) 2,8 m, 3,6 m and 4,2 m
Height-adjustable roller block
Reversing camera with color monitor
Rear headlights

Special equipment:

Front polder shield
Straight shield
Clamping workbench with quick-change plate
Twin stanchions as 2nd and 3rd stanchion on quick-change plate
Rotating stanchion
Bogie lift at the rear
Additional accessories on request

HSM Crane-lists

HSM Crane-list EPSILON

X = available with surcharge, O = standard equipment, # = not available

EPSILON

Crane type	Lifting moment	Range	Gripper type	805F / Kombi
M70 F80	102/68 kNm	8,0 m	FG43S	O
M70 F86	102/68 kNm	8,6 m	FG43S	X
M70 F101	102/65 kNm	10,1 m	FG43S	X
M80 F80	114/79 kNm	8,0 m	FG43S	X
M80 F86	114/79 kNm	8,6 m	FG43S	X
M80 F101	114/75 kNm	10,1 m	FG43S	X
S100 F80	128/91 kNm	8,0 m	FG43S	X
S100 F86	128/90 kNm	8,6 m	FG43S	X
S100 F101	128/86 kNm	10,1 m	FG43S	#
S110 F80	143/104 kNm	8,0 m	FG43S	#
S110 F86	143/104 kNm	8,6 m	FG43S	#
S110 F101	143/100 kNm	10,1 m	FG43S	#
X120 F80	159/111 kNm	8,0 m	FG43S	#
X120 F86	159/110 kNm	8,6 m	FG43S	#
X120 F102	159/107 kNm	10,2 m	FG43S	#
X140 F80	173/123 kNm	8,0 m	FG43S	#
X140 F86	173/122 kNm	8,6 m	FG43S	#
X140 F102	173/119 kNm	10,2 m	FG43S	#

Low crane pillar (height: 1730 mm)

HSM Crane-list Mesera

X = available with surcharge, O = standard equipment, # = not available

Mesera

Crane type	Lifting moment	Range	Gripper type	805F / Kombi
F71 F72	99/75 kNm	7,2 m	FG43S	X
F71 FT85	99/70 kNm	8,5 m	FG43S	X
F71 FT100	99/66 kNm	10,0 m	FG43S	X
F71 FT100i	99/66 kNm	10,0 m	FG43S	X
F83 F72	106/82 kNm	7,2 m	FG43S	X
F83 FT85	106/76 kNm	8,5 m	FG43S	X
F83 FT100i	106/73 kNm	10,0 m	FG43S	X
M 92 F80i	130/84 kNm	8,0 m	FG43S	X
M 92 FT86i	130/84 kNm	8,6 m	FG43S	#
M 92 FT100i	130/84 kNm	10,0 m	FG43S	#
F111 F72	151/111 kNm	7,2 m	FG43S	#
F111 F85	151/100 kNm	8,5 m	FG43S	#
F111 FT85	151/100 kNm	8,5 m	FG43S	#
F111 FT91	151/98 kNm	9,1 m	FG43S	#
F111 FT100	151/101 kNm	10,0 m	FG43S	#
M122 F85i	155/110 kNm	8,5 m	FG43S	#
M122 F96i	155/ - kNm	9,6 m	FG43S	#
M122 FT100i	155/ - kNm	10,0 m	FG43S	#
M142 F85i	178/132 kNm	8,5 m	FG43S	#
M142 F96i	178/124 kNm	9,6 m	FG43S	#
M142 FT100i	178/ - kNm	10,0 m	FG43S	#
