HSM 805H

Professional – productive – reliable.

The 805H is our classic all-rounder. Across all versions, it offers high productivity and, despite its wide range of applications, loses nothing of the quality and reliability one expects from HSM machines. It is therefore the first choice for varying fields of application mainly with medium trunk timber.

Technical data

Engine:
  • IVECO
    NEF 4 cyl. Common Rail Turbo / EuroMot TIER 3B
    Engine output: 125 kW (170 DIN horsepower)
    Max. rpm: 2200 rpm
    Max. torque: 700 Nm at 1500 rpm
    Engine capacity: 4.5 litres
Transmission:
  • HSM High Speed Drive (71 series)
  • 2-step NAF transfer gearbox
Axles:
  • Planetary axles
  • 100% separately selectable differential locks, front and rear
Brake:
  • 2-circuit brake, disk brake running in an oil bath
  • Spring-loaded parking brake
Steering:
  • Articulated steering with 2 cylinders
  • 45° steering angle
Diesel tank:
  • Diesel: 175 l
  • AdBlue: 25 l
  • Hydraulic fluid: 90 l
Hydraulics:
  • Load sensing
  • Pump output: Flow rate: 232 litres/min at 1600 rpm
    Pressure:up to 350 bar
  • Hydraulic fluid: Saturated, synthetic ester
    Panolin HLP SYNTH with Kleenoil
    Microfiltration; WGK 1
Cabin:
  • HSM Panorama comfort cab
  • ROPS, FOPS, OPS tested safety cab
  • Swivel seat device, air-suspended comfort seat
  • heating/air-conditioning
Electrical system / Instruments:
  • HSM Ecommand colour-display
  • 5 operator programs + factory setting
  • diagnosis-tool and error-indication, graphic support at parameter editing, generator 24 V, 90 A; 2 service-free dry batteries á 56 Ah
Standard equipment:
  • 12 LED work lamps, 24 V - 12 V voltage transformer, Radio with CD player, fire extinguisher, first-aid kit, warning, triangle, tool set and much more
Special accessories:
  • Tiltable front polder shield, front loader (Hauer), trailer hitch, outer hydraulic connection, remote control for cable winch, wireless driving, auxiliary heating, sun blinds, seat damping pad
  • Additional accessories on request

Technical details

Winches:
  • Series:
    Adler HY 16 (2 x 80 kN) double-drum winch
    Max. cable take-up of 14 mm, 100 m
  • Optional:
    Adler HY 20 (2 x 100 kN) double-drum winch
    Max. cable take-up of 14 mm, 100 m
Weight:
  • 10900 kg (standard)
Forwarder:
  • Epsilon M80 R59 - R80
    (max. range 8 m, lifting moment 95 kNm gross)
  • Epsilon M90 R59 - R72
    (max. range 7.2 m, lifting moment 104 kNm gross)
  • Mesera F81 R51 - RT65
    (max. range 6.5 m, lifting moment 93 kNm gross)
  • Additional cranes on request
Tyres:

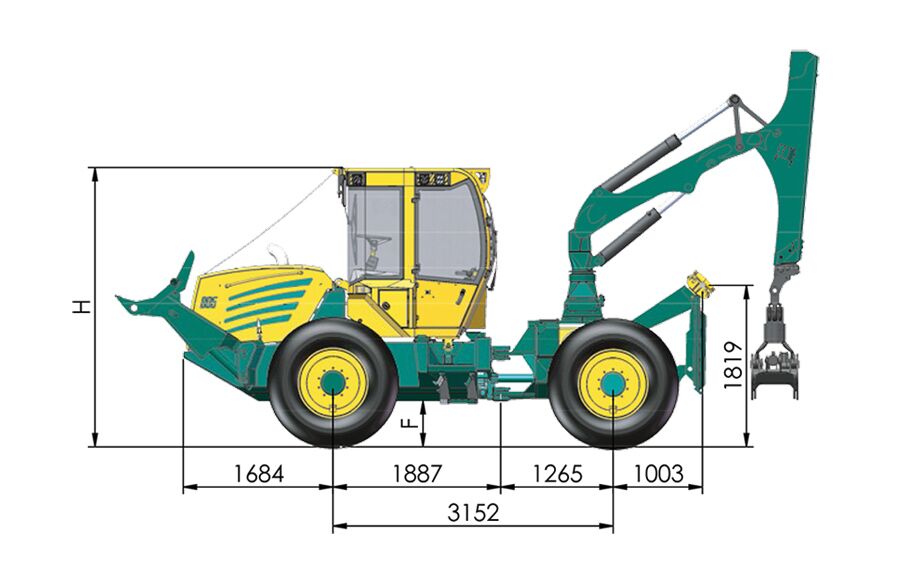

  Size: Total width: H: F:
Series: 600/60-30,5 2360 mm 3190 560
Optional: 650/60-26,5 2460 mm 3160 530
  750/55-26,5 2700 mm 3160 530
  18,4-26 2220 mm 3143 513
  600/60-R28 2360 mm 3136 506
Standard equipment:
  • Fixed front polder shield, 2000 mm wide
  • Lowerable straight shield
  • Epsilon crane M80 R59
  • Torsion lock with 2 hydraulic cylinders and much more
Special equipment:
  • Hydraulically height-adjustable roller block
  • Clamping workbench on height-adjustable roller block
  • Straight shield with sprag brake
  • "Skidder France" version pulley
  • Engine bonnet protection and brush guard made from tubing
  • Additional accessories on request
