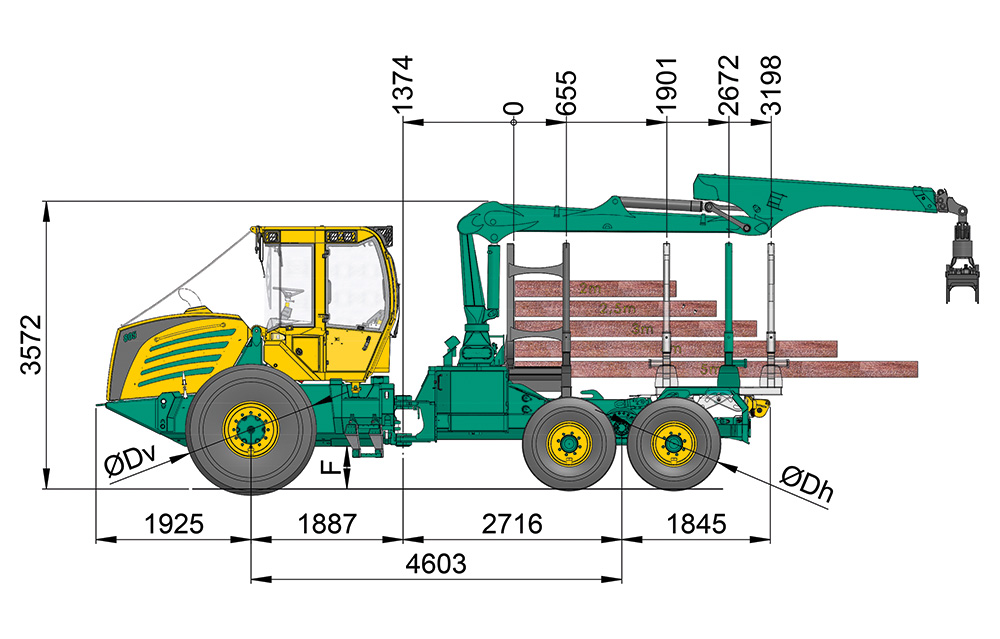

HSM 805F Kombi short/long

805F Kombi kurz
805F Kombi lang
Engine (4 cylinder):
  • VOLVO PENTATA
    D581VE EU Stage V
    Power: 129 kW (175 HP) at 1700 rpm
    Max. revolution: 800 Nm at 1100 - 1500 rpm
    Max. torque: 816 Nm at 1380 rpm
    Displacement: 5,13 liters

    Optional:

  • VOLVO PENTA
    TAD583VE EU Stage V
    Power: 175 kW (238 HP) at 1750 rpm
    Max. revolution: 947 Nm at 1200 - 1750 rpm
    Max. torque: 969 Nm at 1380 rpm
    Displacement: 5,13 liters
Transmission:
  • HSM TwinPowerDrive

Axles:
  • Planetary axles
  • 100 % separately selectable differential locks, front and rear
Brake:
  • 2-circuit brake, disk brake running in an oil bath
  • Spring-loaded parking brake
Steering:
  • Articulated steering with 2 cylinders
  • 45° steering angle
Tank capacity:
  • Diesel: 235 l
  • AdBlue: 25 l
  • Hydraulic oil: 100 l
Hydraulic system:
  • Load sensing
  • Pump output: Flow rate: 232 l/min at 1600 rpm
    Pressure: up to 350 bar
  • Hydraulic oil: Saturated synthetic ester
    Panolin HLP SYNTH with Kleenoil
    Microfiltration; WGK 1
Cabin:
  • HSM Panorama comfort cab
  • ROPS, FOPS, OPS tested safety cab
  • Swivel seat device, air-suspended comfort seat
  • Heating/air-conditioning
Electrics / Instruments:
  • HSM Ecommand colour-display
  • 5 operator programs + factory setting
  • Diagnosis-tool and error-indication
  • Graphic support at parameter editing
  • Generator 110 A (28 V)
  • 2 service-free dry batteries á 55 Ah
Standard equipment:
  • 12 LED work lamps, 24 V - 12 V voltage transformer, radio with CD player, fire extinguisher, first-aid kit, warning triangle, tool set
  • Torsion lock with 2 hydraulic cylinders and much more
Special equipment:
  • Tiltable front polder shield, trailer hitch, outer hydraulic connection, remote control for cable winch, wireless driving, auxiliary heating, sun blinds, seat area dampers
  • Additional accessories on request
Winches:
  • Series:
    Adler HY 16-SG (2 x 80 kN) double-drum winch
    Max. cable take-up 14 mm, 100 m

  • Optional:
    Adler HY 20-SG (2 x 100 kN) double-drum winch
    Max. cable take-up 14 mm, 100 m
Weight:
  • from 14.600 kg / 14.800 kg
Payload:
  • 9 t

Crane:
  • Epsilon Kran M70 F80 (series)
  • For further cranes see crane brochure
Tyres:
Series: Size: Minimum width: H: F:
Front: 23,1 x 26 2550 mm 3540 530
Rear: 710/40x22,5
Optional: 28L-26 2600 mm
  620/75-26 2400 mm
  600/65-34 2360 mm
  710/55-34 2620 mm
  67x34-25 3000 mm

The minimum width changes when using belts (+100).
Other tyres on request.

Standard equipment:
  • Headboard grid and first stanchion removable
  • Last stanchion can be removed and adjusted to
    (short) 1,9 m, 2,7 m and 3,2 m
    (long) 2,4 m, 3,1 m and 3,7 m
  • Height-adjustable roller block
  • reversing camera with color monitor
  • rear headlights
Special equipment:
  • Front polder shield
  • Straight shield
  • Clamping workbench with quick-change plate
  • Rotating stanchion
  • Kombi long: Twin stanchions as 2nd and 3rd stanchion on quick-change plate
  • Additional accessories on request
HSM Crane-list EPSILON

X = available with surcharge, O = standard equipment, # = not available

EPSILON

Crane type Lifting
moment
Range Gripper
type
805F / Kombi
M70 F80 102/68 kNm 8,0 m FG43S O
M70 F86 102/68 kNm 8,6 m FG43S X
M70 F101 102/65 kNm 10,1 m FG43S X
M80 F80 114/79 kNm 8,0 m FG43S X
M80 F86 114/79 kNm 8,6 m FG43S X
M80 F101 114/75 kNm 10,1 m FG43S X
S100 F80 128/91 kNm 8,0 m FG43S X
S100 F86 128/90 kNm 8,6 m FG43S X
S100 F101 128/86 kNm 10,1 m FG43S #
S110 F80 143/104 kNm 8,0 m FG43S #
S110 F86 143/104 kNm 8,6 m FG43S #
S110 F101 143/100 kNm 10,1 m FG43S #
X120 F80 159/111 kNm 8,0 m FG43S #
X120 F86 159/110 kNm 8,6 m FG43S #
X120 F102 159/107 kNm 10,2 m FG43S #
X140 F80 173/123 kNm 8,0 m FG43S #
X140 F86 173/122 kNm 8,6 m FG43S #
X140 F102 173/119 kNm 10,2 m FG43S #

Low crane pillar (height: 1730 mm)

HSM Crane-list Mesera

X = available with surcharge, O = standard equipment, # = not available

Mesera

Crane type Lifting
moment
Range Gripper
type
805F / Kombi
F71 F72 99/75 kNm 7,2 m FG43S X
F71 FT85 99/70 kNm 8,5 m FG43S X
F71 FT100 99/66 kNm 10,0 m FG43S X
F71 FT100i 99/66 kNm 10,0 m FG43S X
F83 F72 106/82 kNm 7,2 m FG43S X
F83 FT85 106/76 kNm 8,5 m FG43S X
F83 FT100i 106/73 kNm 10,0 m FG43S X
M 92 F80i 130/84 kNm 8,0 m FG43S X
M 92 FT86i 130/84 kNm 8,6 m FG43S #
M 92 FT100i 130/84 kNm 10,0 m FG43S #
F111 F72 151/111 kNm 7,2 m FG43S #
F111 F85 151/100 kNm 8,5 m FG43S #
F111 FT85 151/100 kNm 8,5 m FG43S #
F111 FT91 151/98 kNm 9,1 m FG43S #
F111 FT100 151/101 kNm 10,0 m FG43S #
M122 F85i 155/110 kNm 8,5 m FG43S #
M122 F96i 155/ - kNm 9,6 m FG43S #
M122 FT100i 155/ - kNm 10,0 m FG43S #
M142 F85i 178/132 kNm 8,5 m FG43S #
M142 F96i 178/124 kNm 9,6 m FG43S #
M142 FT100i 178/ - kNm 10,0 m FG43S #
The variable rear

Last stanchion variable in "short" position

Last stanchion variable in "centre" position

Last stanchion variable in "long" position

Quick-change twin stanchion for 2 x 2 or 2 x 2.5 m wood (not for 805F short version)

Height-adjustable pulleys up to 2 m

Rope forwarding possible without reconfiguring the stanchion

Log forwarding with quick-change clamping workbench

Rope forwarding possible without reconfiguring the clamping workbench
